Within strategic situations where it is essential to ensure the protection of the perimeter, it is necessary to have a system capable of signaling attempts to climb, break through and cut and capable of operating in any climatic condition.

Our company has designed and implemented several perimeter protection systems for dual technology fences based on special analysis algorithms capable of exploiting piezodynamic signals (vibrations) and accelerometric signals (three-dimensional oscillations).

The processing technique is the result of an international patent from one of our partners and has given rise to a technology that allows to obtain levels of performance and reliability never before achieved.

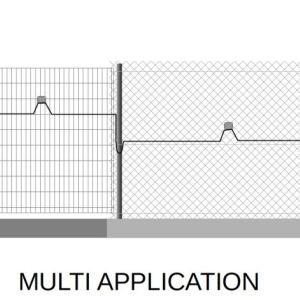

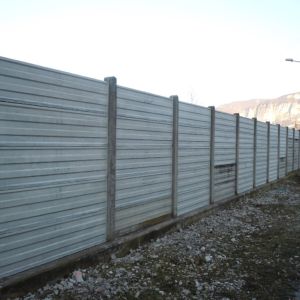

In the case of rigid and semi-rigid fences, the system can cover 5m for each sensor for a total of 1500m.

Each sensor is addressed and can therefore be individually calibrated and programmed.

The sensors can also be managed individually (each sensor an alarm zone) or within logical lines so that an alarm zone can have a length from 3 to 100 meters.

The sensors are also equipped with self-diagnosis on both communication and operation.

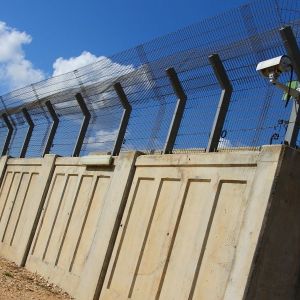

In the protection of walls with barbed wire, it is possible to apply the sensor in the upper part, to detect cutting and climbing attempts, and extend the coverage to the lower part by means of a metal link that allows to directly transmit the vibrations in the event of an attempt breakthrough. The system is interfaced to an ethernet network and managed through a customizable software synoptic.

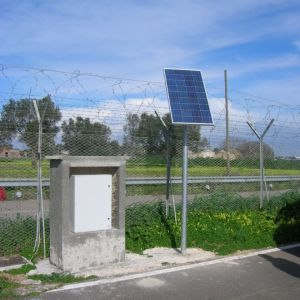

For the most remote areas where there is no electricity grid, it is possible to configure the system with solar panel power and to transfer the signals via a TCP / IP radio link.

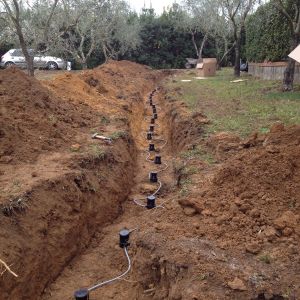

It is a system capable of perceiving the seismic waves that propagate in the ground when a person walks on the surface.

The sensors are positioned at a depth of 60cm and are passive, therefore maintenance-free and wear-free.

The sensors are also wired on a double channel, in order to double the information to be analyzed and allow for high sensitivity and great immunity.

Each line of the system covers a perimeter of 50m.

The processing card is IP-native and therefore can be inserted into a TCP / IP network without any additional equipment or software. The solution includes a box that provides power and communication to the supervision system or the alarm control unit.
